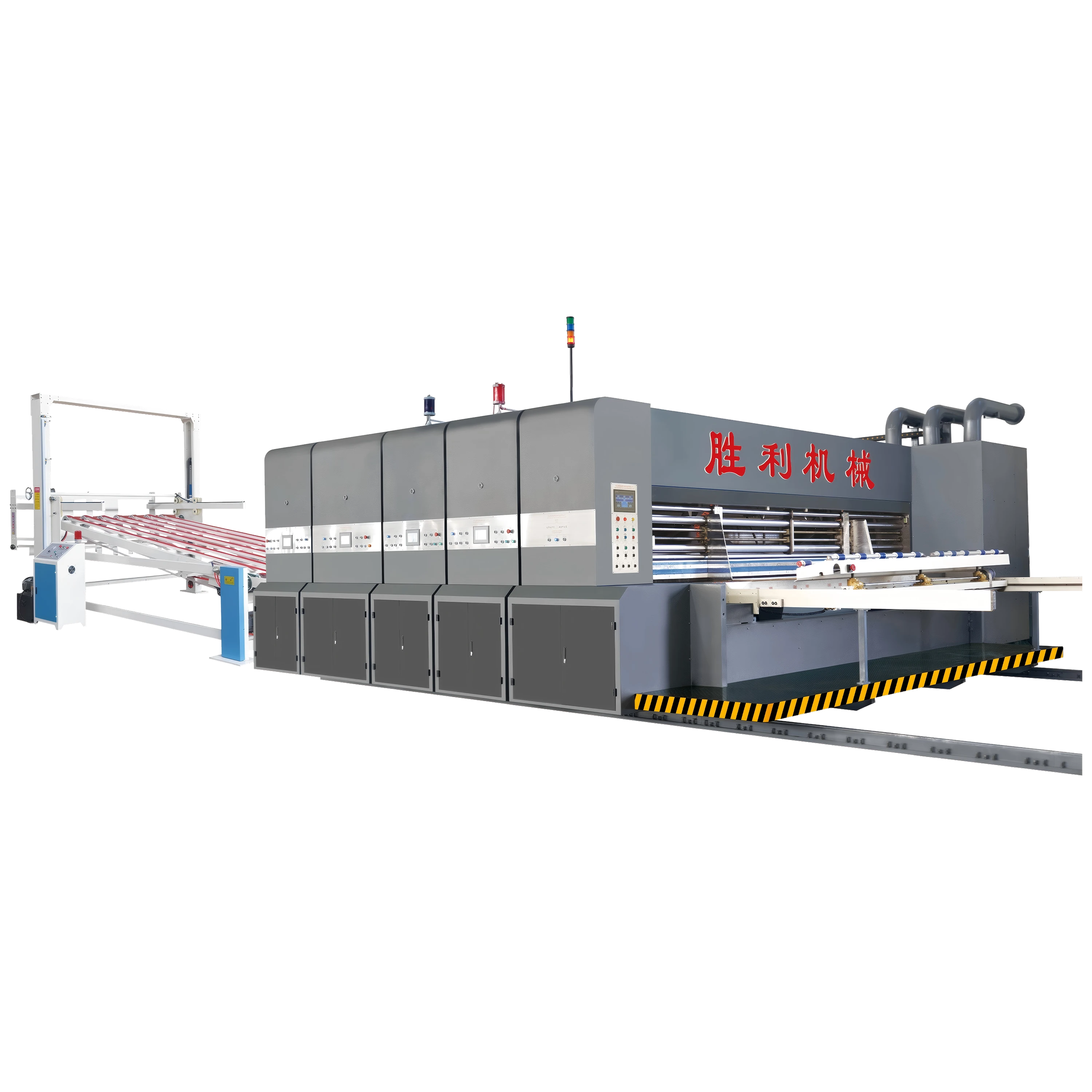

YKW Series of High Speed Flexo Ink Corrugated Paperboard Printing Slotting Die Cutting Machine

更新时间：2025-05-06

1.All the main electric appliances of the whole machine adoptthe products of Schneider made in France.

2.Adopt lead-edge feeder system.

3.Adopting helical gear driving,the gears are made from highfrequency quenching and polishing-gear.

4.All axles of roller must be chrome-plating in order toincrease the hardness.

5.The gears adopt shower type circular lubricating.

6.This machine adopts PLC&touch screen.Multifunctional control,and frequency conversion controlmachine which are precise and reliable.

7.Automatically changes back to zero and corrects the platemaking.

8.Adopting the mould piece designing.The multi-colorprinting machines can be combined and linked in any way.

9.can print seven layer corrugated paperboard with three Aflute and honey comb paperboard.

Main technical parameter:

Serial	Name of parameter	Unit	Specification
Serial	Name of parameter	Unit	YKW 2500×2500	YKW 2500×3000	YKW 2500×4000	YKW 2500×4600
1	Width of inside machine	mm	2920	3420	4420	5020
2	Design speed	pieces/min	100	100	100	100
3	Maximum size of feeding paper	mm	2400×2500	2400×3000	2400×4000	2400×4600
4	Minimum size of feeding paper	mm	650×900	650×900	650×900	650×900
6	Maximum printing area	mm	2400×2400	2400×2900	2400×3900	2400×4500
7	Precision of process printing(Double/three/four color)	mm	±0.5/±0.5/±0.75	±0.5/±0.5/±0.75	±0.5/±0.5/±0.75	±0.5/±0.5/±0.75
8	Thickness of standard printing plank	mm	7.2	7.2	7.2	7.2
9	Thickness of printing paperboard	mm	5月15日	5月15日	5月15日	5月15日
10	Minimum slotting space(same knife direction)	mm	320×100×320×100	320×100×320×100	320×100×320×100	320×100×320×100
11	Maximum slotting depth	mm	620	620	620	620
12	Printing roller axle-oriented regulating	mm	±10	±10	±10	±10
13		mm	2400×2500	2400×3000	2400×4000	2400×4600
13	Maximum die-cut size	mm	2400×2500	2400×3000	2400×4000	2400×4600
