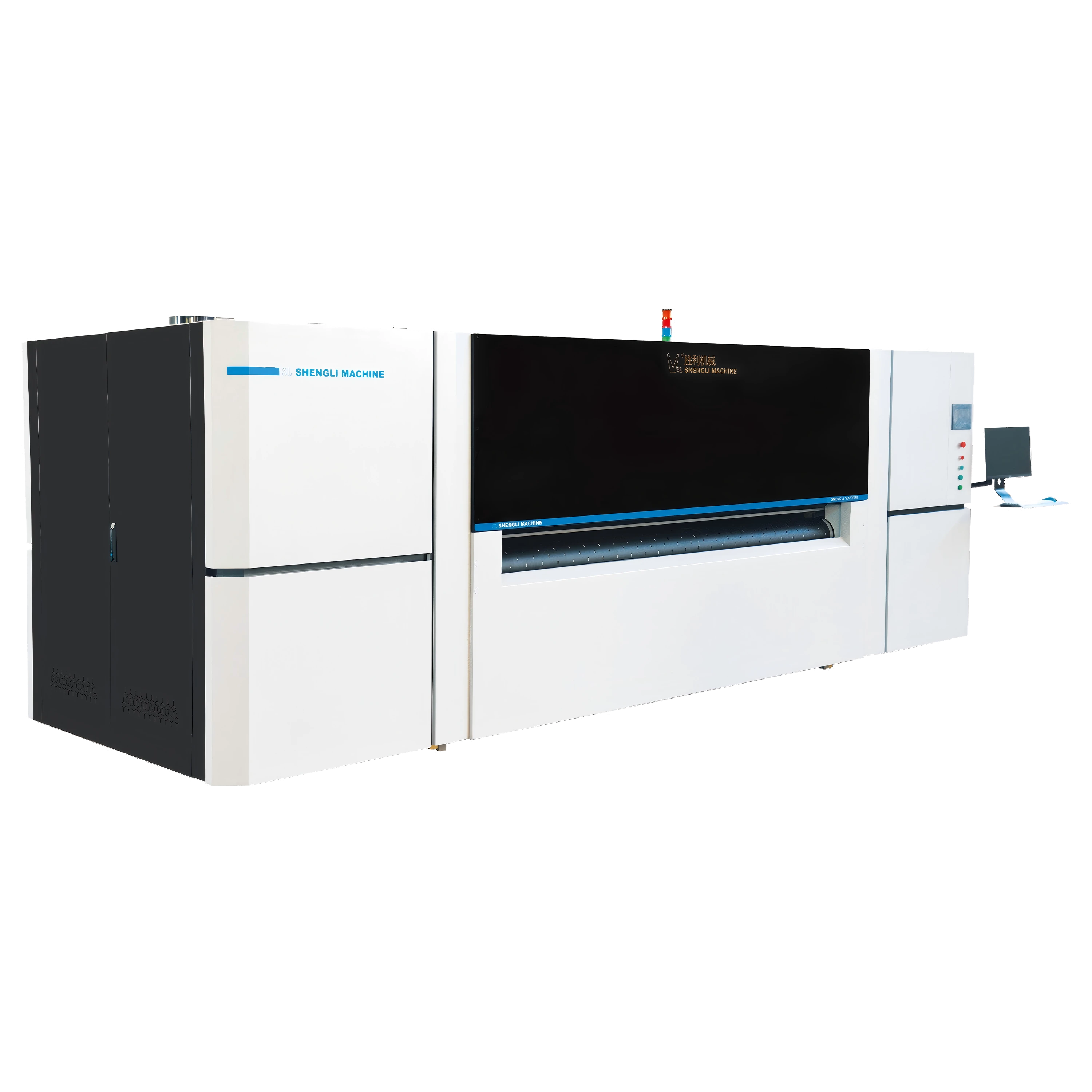

DM2500 Mutipass Corrugated Paperboard Digital Printer

更新时间：2025-05-06

Product features:

1.Plateless printing -the computer typesetting system is efficient and fast.Multiple different orders can be printed continuously and switched seamlesslyin the system.

2.Labor saving -computer drawing,computer color matching,computer saving,time-saving and labor-saving.

3.Green environmental protection -automatic color removal,no water washing,to avoid sewage.

4.Customized production -optional drying varnish system to achieve waterproofeffect while maintaining fast printing and gorgeous color.

Technical parameter:

Model	DM2500-8A	DM2500-16A
Printhead	EPSON piezoelectric high precision printhead
Printhead quantity	8个/PCS	16个/PCS
Ink type	CMYK Water based ink
Color model	Cyan,Magenta,Yellow,Black
Printhead height	2-4mm
Printing resolution	≥360*600dpi	≥360*600dpi
Printing efficiency	Max 700 m²/h	Max 1400 m²/h
Max.feeding width	2500mm
Material thickness	1.5mm-25mm
Ink supply	Automatic ink supply
Feeding mode	Automatic leading edge feeding system
Operate system	Professional RIP system,professional printing system,Win7 system with 32 bit operating system or above
Working environment	20-28℃,Humidity 50%-70%
Power supply	AC380±10%,50-60HZ About 30KW;Power:AC380±10%,50-60HZ
Machine size	L×W×H:3500×5400×1900
Weight	4800KG

DM2500 Mutipass Corrugated Paperboard Digital Printer
1.Plateless printing -the computer typesetting system is efficient and fast.Multiple different orders can be printed continuously and switched seamlesslyin the system.
