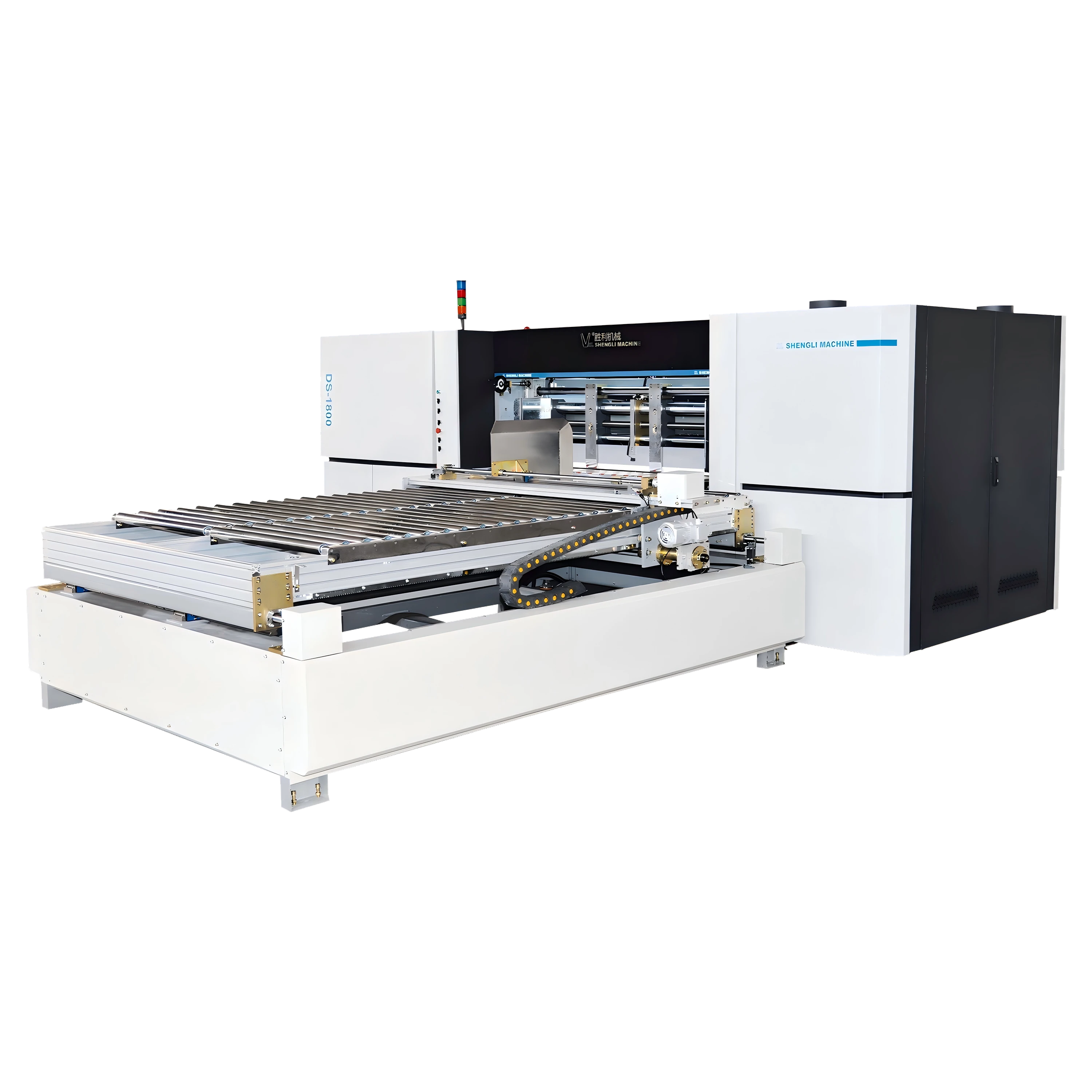

DS1800 High Speed Corrugated Paperboard Digital Printer

更新时间：2025-05-06

Product features:

1.Plateless printing -the computer typesetting system is efficient and fast.Multipledifferent orders can be printed continuously and switched seamlessly in the system.

2.High speed production -the maximum theoretical speed can reach 1.8m/s,and high-precision printing can also reach 0.45m/s.

3.Labor saving -computer drawing,computer color matching,computer saving,time-saving and labor-saving.

4.Green environmental protection -automatic color removal,no water washing,toavoid sewage.

5.Customized production -the printing width can be customized according to customerneeds.It can be optionally equipped with a drying and polishing system to achievewaterproof effect while maintaining fast printing and gorgeous color.

Technical parameter:

Model	DS1800-16A/24A/32A/36A
Printhead	EPSON piezoelectric high precision printhead
Printhead quantity	16PCS/24PCS/32PCS/36PCS(Can be customized)
Ink type	CMYK Water based ink
Color model	Cyan,Magenta,Yellow,Black
Printhead height	2-4mm
Printing resolution	≥200*600dpi
Printing resolution and Maxprinting speed	600300dpi,Max speed 1.8 m/s;600600dpi,Max speed 0.9 m/s;600*1200dpi,Max speed 0.45 m/s;
Max.feeding width	1800mm
Max.printing width	Printhead quantity multiply by 33mm
Material thickness	1.5mm-25mm
Ink supply	Automatic ink supply
Feeding mode	Automatic leading edge feeding system
Operate system	Professional RIP system,professional printing system,Win7 system with 32 bit operating system or above
Working environment	20-28℃,Humidity 50%-70%
Power supply	AC380±10%,50 - 60HZAbout 35KW;Power:AC380±10%,50-60HZ
Machine size	5100×5400×1900L×W×H:5100×5400×1900
Weight	5200KG
