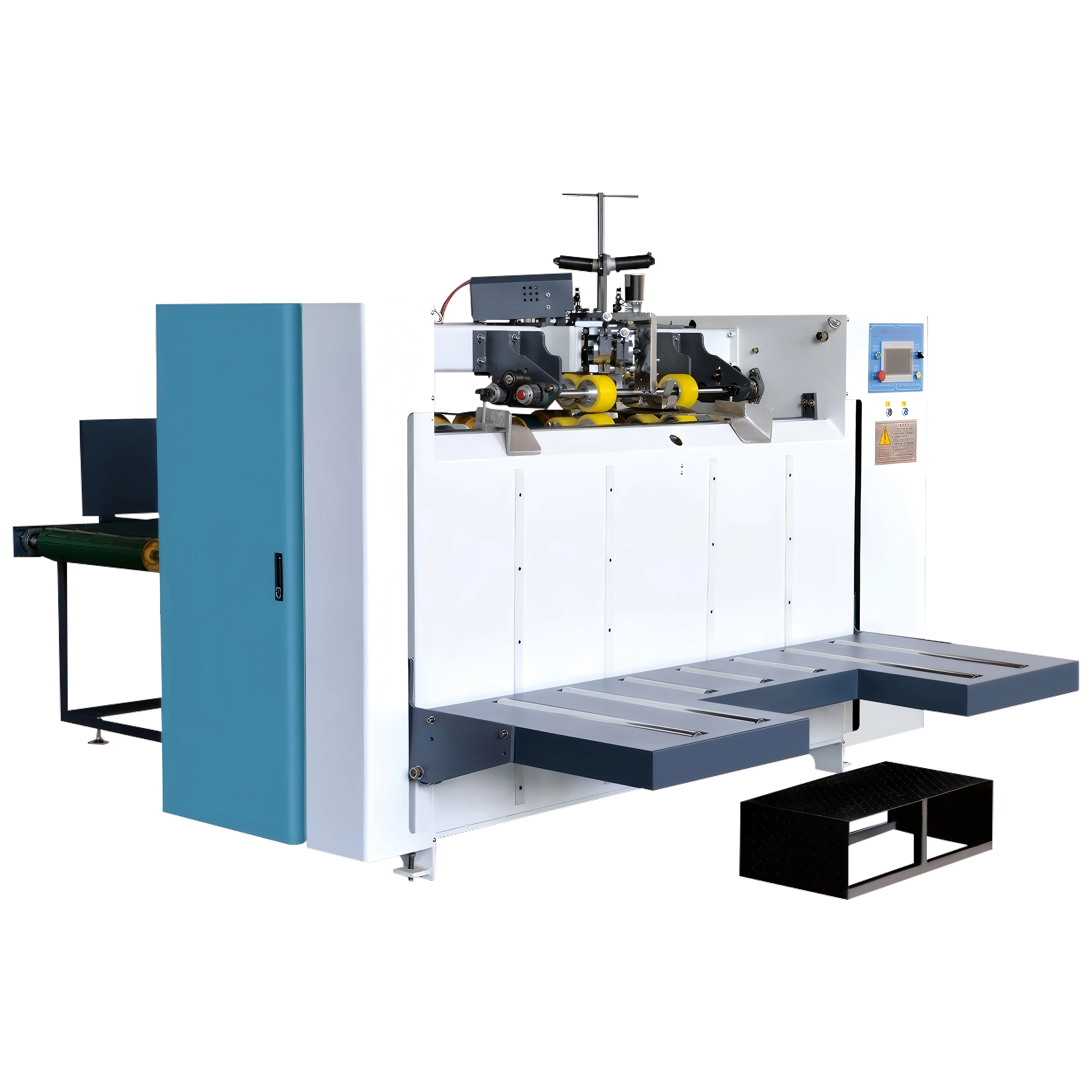

SBD Series Double Servo System Semi-Automatic Single Piece Stapling Machine
更新时间:2025-05-06
SBD Series Double Servo System Semi-Automatic Single Piece Stapling Machine

Functions and characteristics:

1.Changing the size within one minute.

2.Easy operation and no need for experience.

3.The machine could be stapled single nail.

4.Feeding department automatic count,whenget the bundle then send to tie up.

5.Operation by  touch screen.

6.Adopting servo control system.

7.The distance between each nail can reach 120mm.

8.Having cover or no cover could be nailed.

9.The distance of nails could be input by the touch screen directly.

10.The thickness of the paper could beadjusted automatically.



A

Max.

1100mm

Min.

200mm

B

Max.

700mm

Min.

160mm

E

Max

45mm

Min.

25mm

Main technical parameter:

Name of parametre

Unit

Parametre

Max.size(A+B)×2

mm

2800

Min size(A+B)×2

mm

660

Max.width(C+D+C)

mm

1500

Min.width (C+D+C)

mm

330

Total power of the machine

kw

6.3

Shape size of the machine

mm

2800x2600

Total weight of the machine

kg

1800

Distance of stapling

mm

30-120

Speed of the stapling box

nail/min

400

Nail ling model


17#、18#

Amount of the nails


1-99
