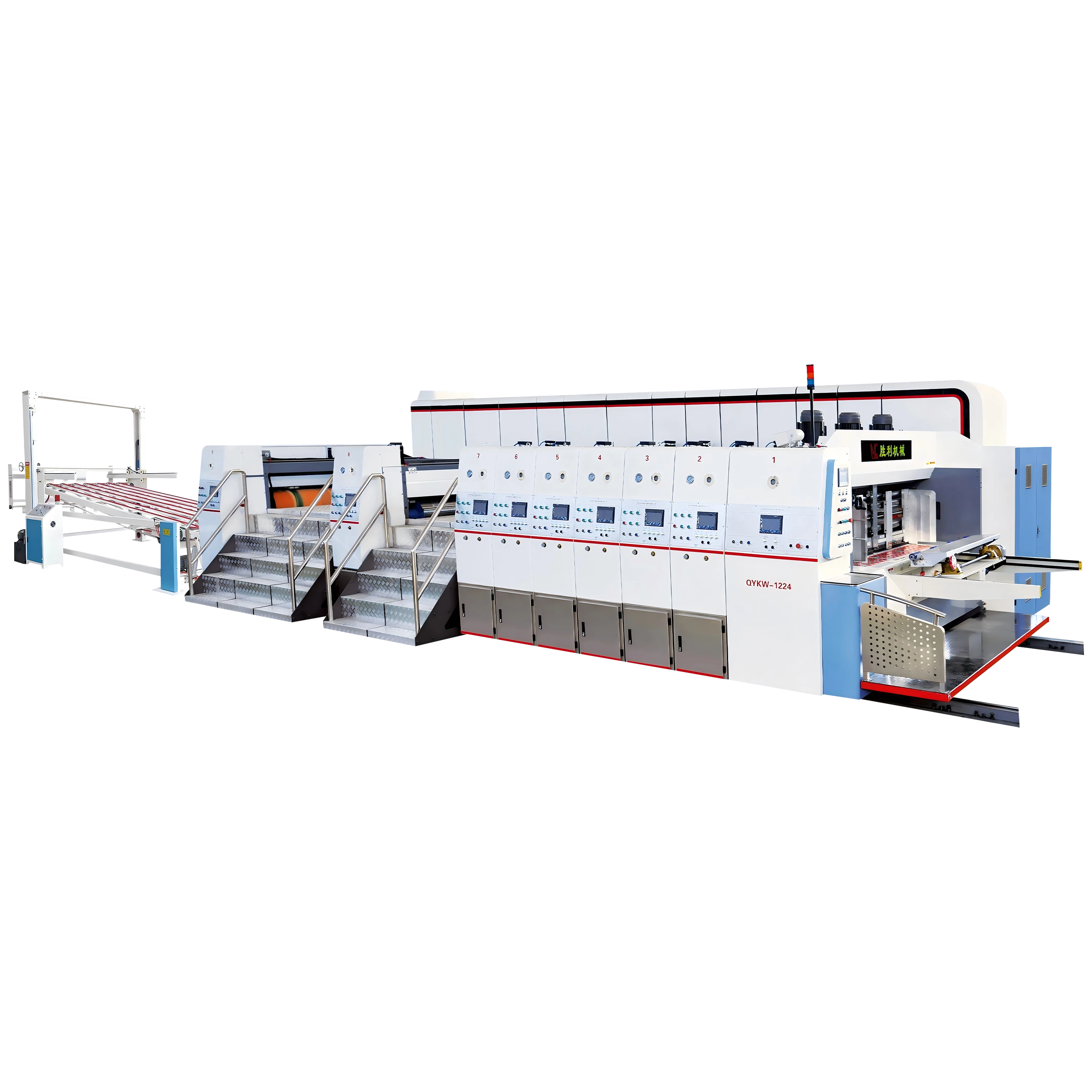

QYKW Full Vacuum High Definition、High Speed Flexo Ink Printing Slotting Die Cutting Machine

更新时间：2025-05-05

Main engine of performance and features:

1.Machine in accordance with high precision,high efficiency,low consumption,reliability,anddesign and manufacturing.

2.The transmission gear alloy steel,quenched and tempered,high-frequency quenching,grindingteeth together.

3.Using Keyless gapless swelling connections to ensure transmission accuracy, can achieve long-term print registration.

4.Transmission automatic balancing device structure using the oil, oil remains balanced each unit.

5.Independent drying system (Infrared drying system), the drying temperature can be adjusted according to need, optional UV drying system.

6.The machine is equipped with a slotting attachment to achieve a multi-purpose machine. It canremove the slot unit.

7.The machine electrical features: central control, data synchronization, automatic recording, positive energy, high-speed positioning.

8.This machine can realize network remote control.

9. International famous brands are used for electrical equipment.

10.This machine adopts gear drive, and also can adopt full servo drive according to customer requirements.

Main technical parameters:

Serial	Name of parameter	Unit	Specification
Serial	Name of parameter	Unit	QYKW 920	QYKW924	QYKW1224	QYKW1228	QYKW1625	QYKW1628	QYKW1632
1	Width of inside machine	mm	2450	2850	2850	3250	3050	3350	3750
2	Design speed	pieces/min	300	300	260	260	180	180	160
3	Maximum size of feeding paper	mm	900×2000	900×2400	1200×2400	1200×2800	1600×2500	1600×2800	1600×3200
4	Minimum size of feeding paper	mm	280×600	280×600	350×600	350×600	450×600	450×600	450×600
5	Feeding paper by partition	mm	1100×2000	1100×2400	1500×2400	1500×2800	2000×2500	2000×2800	2000×3200
6	Maximum printing area	mm	900×1960	900×2360	1200×2360	1200×2760	1600×2480	1600×2780	1600×3180
7	Precision of process printing(Double/three/four color)	mm	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
8	Thickness of standard printing plank	mm	7	7	7.2	7.2	7.2	7.2	7.2
9	Thickness of printing paperboard	mm	2-11	2-11	2-11	2-11	2-12	2-12	2-12
10	Minimum slot space (Same side)	mm	130×130×130×130		135×135×135×135		135×135×135×135
11	Minimum slot space (different side)	mm	260×70×260×70		270×80×270×80		230×65×230×65
12	Maximum slot depth	mm	225	225	300	300	400	400	400
13	Printing roller axle-oriented regulating	mm	±10	±10	±10	±10	±8	±8	±8
14	Max.die-cut size	mm	850×2000	850×2400	1150×2350	1150×2750	1500×2500	1500×2800	1500×3200
15	Die-cut thickness	mm	2-8	2-8	2-8	2-8	2-8	2-8	2-8
